RaffrescatorePortatile181-MPC

Sined Portable 181 Evaporative Cooler With Water Consumption 23 Liters Per Hour
Evaporative water cooler with great energy savings: This unit consumes only 1/10 of a traditional air conditioner.
The water supply can be carried out:
– Continuously by connection to a garden hose or
– Manual: The tank can be filled by passing water through the side outlet.

Main features:
– Motor with water pump protected against lack of water or low level.
– Low acquisition costs, low energy consumption, low installation costs, low maintenance costs
– Aluminium motor, 100% copper wire
– Durable water pump
– Float valve with unique design, water pressure from 0 bar to 5.5 bar

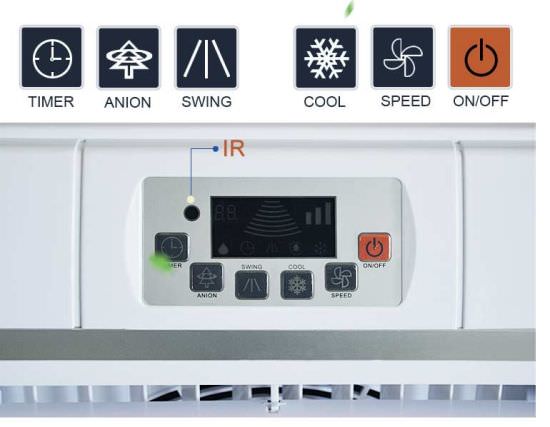

– Automatic oscillation, remote control, automatic switch-off

Technical features:
Power (W) 85
Air flow (m³ / h) 3000
Axial fan
Air ionizer
Number of speed levels 3
Suitable for areas (sqm) 20-25
Noise level (dBA) e #8804– 50
Water tank (L) 26
Water consumption (L/h) 2-3
Net weight (kg) 11,4
Dimensions (mm) 520x405x1000

Cleaning and maintenanceAlways unplug the cooler before cleaning!1) Cabinet Cleaning: please clean with mild cleaner and the soft cloth. Evaporable liquor such as gas or alcohol is NOT allowed.
2) Cooling pad cleaning: take out the pad and brush the dust on its surface with SOFT brusher.
3) Water tank cleaning: Set the time and frequency according to manual when automatically cleaned. Take out the plug of drainage outlet and clean it when manual cleaned.
4) Maintenance:
a) The frequency for cleaning depends on the local air and water conditions. For example, in areas where mineral content of the water is high, deposits may build up in the cooling pad, restricting air flow. In this case, it is recommended to clean the cooling pad every two months.
b) Always drain the water from the unit after use.
c) For best results, allow the cooling pad to dry after each use by turning off the cool function 15 minutes before turning the unit off.
d) Before store an evaporative air cooler, please power off, drain all the water and add the dust filter to avoid the dust and the mosquito breeding.

• 1-Mobile evaporative cooler, uses water evaporation to cool the air
• 2-Evaporative air cooler with protected water pump
• 3-Water operated cooler with a consumption of only 85W
• 4-Air cooler for rooms of 20-25 sqm
• 5-This evaporative cooler with remote control cools a room with a consumption of only 2-3 litres of water per hour
